Giant Reign E+ 3 (2024)

Every trail, every steep climb, every thrilling descent. Nothing is out of bounds with the Reign E+. This proven trail ripper gives you the power to enjoy the best parts of the ride again and again.

Trail technology

Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor boost your capabilities on steep climbs and rugged descents. Progressive geometry with a shorter rear end and longer reach allow superior handling and agility on technical terrain.

Total control

RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant E-bike App gives you tuning options and E-bike specific fitness tracking.

Long-lasting power

Climb steep mountains and enjoy ripping descents all day long with the new downtube-integrated EnergyPak battery system featuring 800Wh of capacity.

Range

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

• Range:
  Extreme: 70 km
  Good: 140 km
  Ideal: 250 km

SPECIFICATIONS

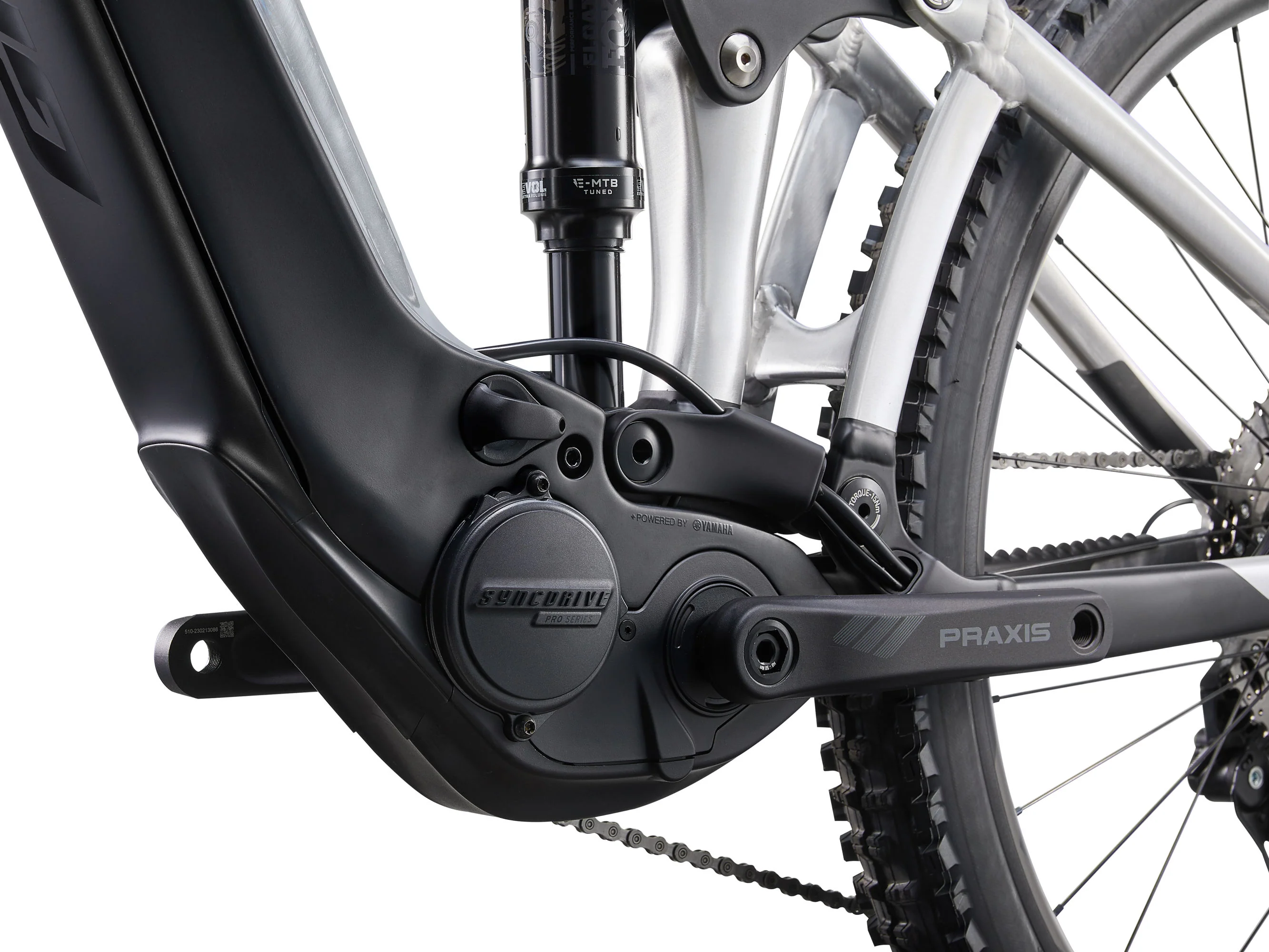

Motor	SyncDrive Pro 2, 85Nm, powered by Yamaha
Controller	RideControl Ergo 3, grip integrated
Display	RideControl GO, frame integrated LED display, ANT+ Wireless display compatible
Battery	EnergyPak Smart 800Wh, EnergyPak Plus range extender compatible
Charger	EnergyPak 6A smart charger
Maximum Assisted Speed	Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed
Connectivity	Giant RideControl App enabled, ANT+ wireless display signal with e-bike profile
Sizes	S, M, L, XL
Colours	Raw Aluminium

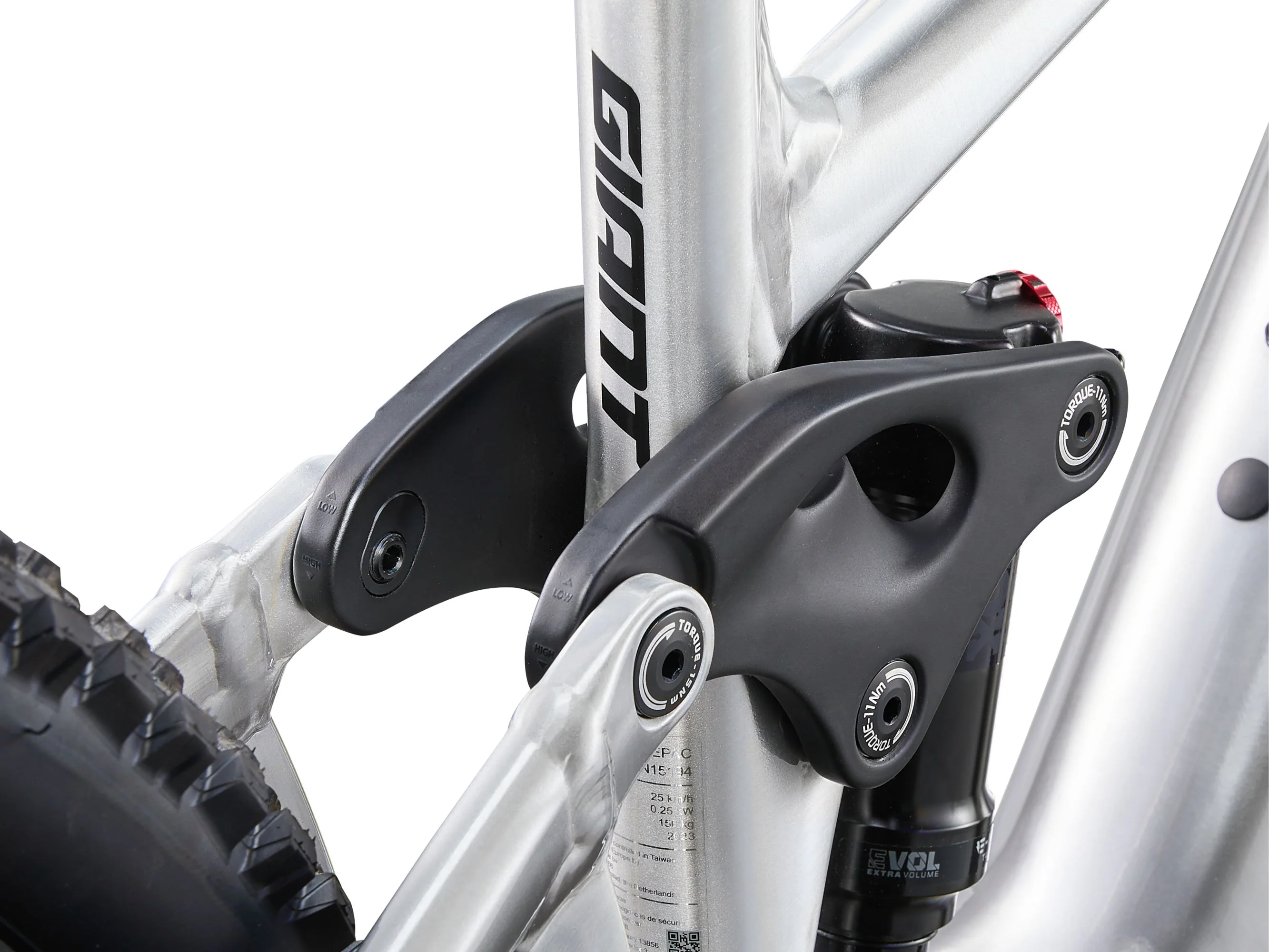

Frame	ALUXX SL-grade Aluminium, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, flip chip, UDH hanger, 12x148mm thru-axle

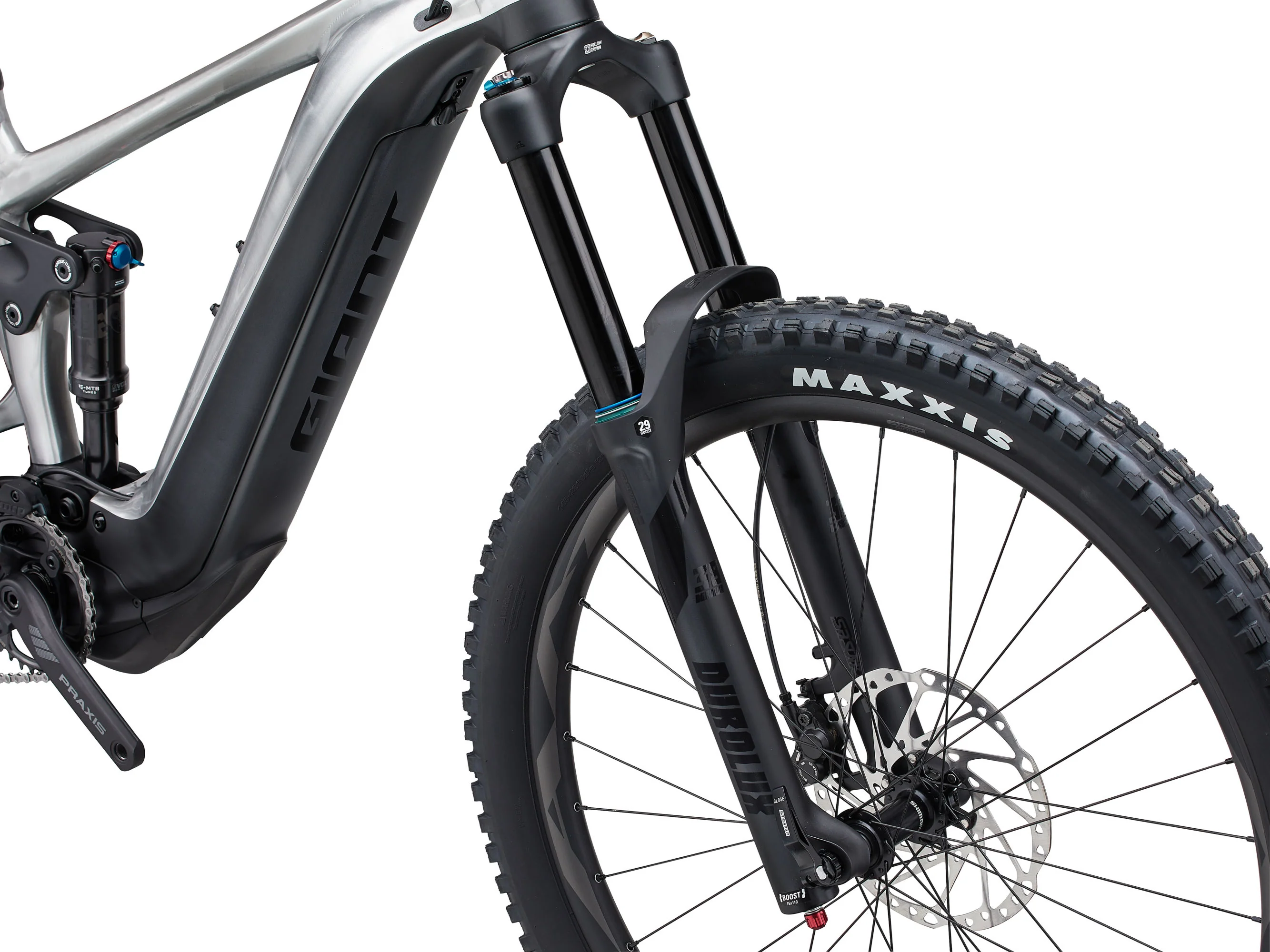

Fork	SR Suntour Durolux 38 Boost EQ, 170mm travel, 44mm offset, RC2, 15x110
Shock	Fox Float DPS Performance, EVOL Large Volume sleeve, custom tuned
Handlebar	Giant Contact Trail, 35mm
Grips	Giant Tactal Pro-E, single lock-on
Stem	Giant Contact SL 35mm — S:40mm, M:40mm, L:40mm, XL:50mm
Seatpost	Giant Contact Switch travel-adjustable dropper, remote — S:110-140mm / 30.9 x 395mm; M:140-170mm / 30.9 x 470mm; L:170-200mm / 30.9 x 530mm; XL:170-200mm / 30.9 x 530mm
Saddle	Giant Romero Trail
Pedals	Platform
Shifters	Shimano CUES SL-6000, 1x11
Front Derailleur	MRP 1X HD2 custom co-molded chain guide
Rear Derailleur	Shimano CUES U6000, Shadow+
Brakes	Shimano BR-MT420, 4-piston hydraulic disc, 203mm
Brake Levers	Shimano Deore, I-spec EV
Cassette	Shimano Cues LinkGlide CS-LG400-11, 11-50T, 11-speed
Chain	Shimano Cues CN-LG500
Crankset	Praxis Wave™ 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set — S:160mm, M:160mm, L:165mm, XL:165mm
Bottom Bracket	N/A
Rims	Giant AM — 29" front / 27.5" rear, tubeless ready
Hubs	Shimano MT410, Boost, Center-Lock — [F]110x15 / [R]148x12mm HG Drive Body, thru-axle
Spokes	Sapim E-Lite (rear), Race (front), e-bike optimised
Tyres	Front: Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra; Rear: Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra
Extras	Tubeless kit (liquid, valves, levers, manual, tool)
Lock	Torx 25 Battery Lock with built-in torque limiter
Weight	The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Weight can vary based on size, finish, hardware and accessories. All bikes are designed for best-in-class weight and ride quality.
